HFN BioGas Cube

Product specifications

Know the cube before planning the site.

Use these dimensions and placement notes while checking installation space, burner position, kitchen distance and daily handling requirements.

Plan a deployment See operation steps Review slurry value Carbon impact
Weight 75 kg
Dimensions 48 x 40 x 45 inch
Burner distance 6-8 feet

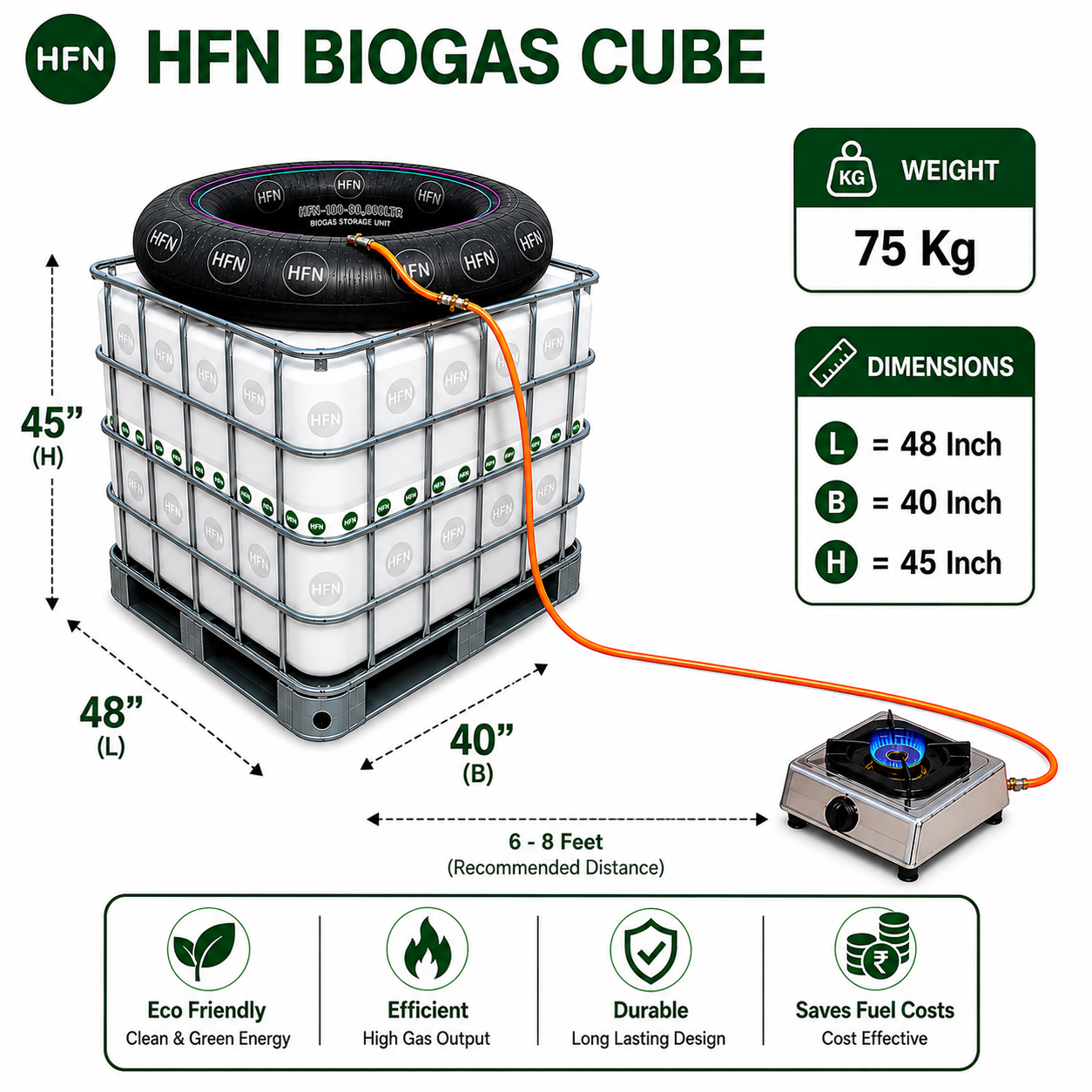

HFN BioGas Cube specification figure showing 75 kg weight, 48 inch length, 40 inch breadth, 45 inch height and 6 to 8 feet recommended burner distance
HFN BioGas Cube product figure with weight, dimensions and recommended burner placement.

Installation planning

Check space, feedstock flow and kitchen distance together.

01

Cube placement

Keep a stable, accessible base close to the dung source and daily water supply.

02

Cooking point

Plan burner placement around the recommended 6-8 feet distance shown in the figure.

03

Daily handling

Leave working room for feeding, checking valves, moving the hose and collecting slurry.

Plan slurry use
04

Gaushala scaling

For larger gaushalas, unit count should follow daily dung availability and kitchen fuel demand.

Plan impact per cube

Specification ready

Have site photos and daily dung availability ready before deployment planning.
